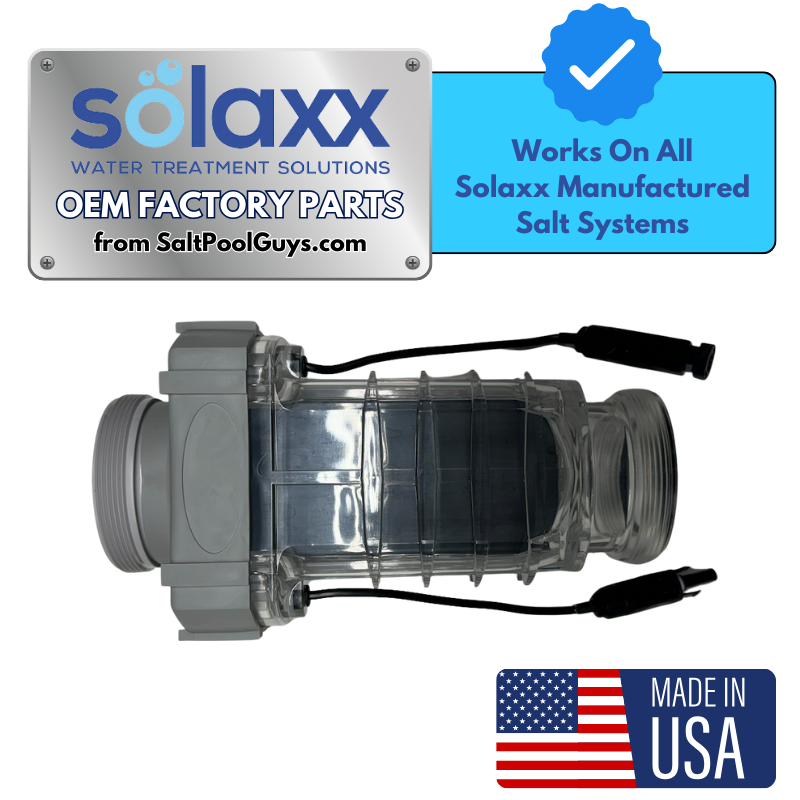

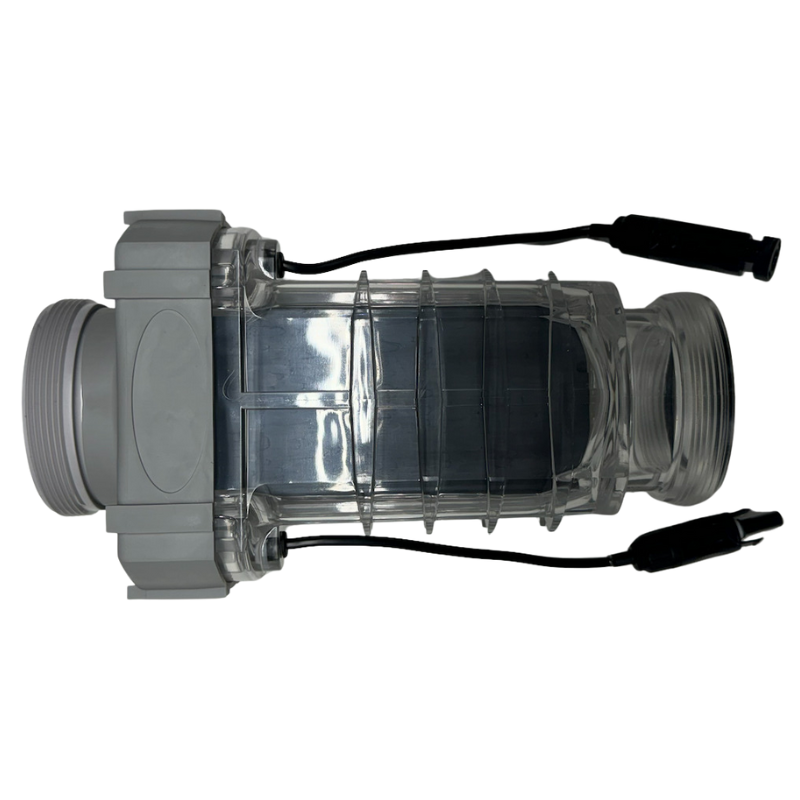

- Compatibility: Solaxx is a Florida based manufacturer of salt pool systems. They manufacture salt pool systems under multiple brand names. The universal series cells are made directly by Solaxx and are a direct replacement for any of their brands of salt systems. Compatibility includes Saltron Reliant, Sunsalt & PureChlor.
- Part # C114199G: Manufacturer Rated at 15,000 Gallons
- Part # C115199G: Manufacturer Rated at 25,000 Gallons
- Part # C117199G: Manufacturer Rated at 40,000 Gallons
- Pre-Check 1: Are the internal blades of the salt cell free and clear of any debris or build up? If not, clean the cell before proceeding.
- Pre-Check 2: Has it been verified through a water sample test that there is a proper amount of salt in the water? If not, adjust to 3500-4500 ppm before proceeding.
- Ensure that the pool pump is on and operating with proper water flow.
- Tap the "CL2" button until all 8 LEDs are on.
- Wait and allow the system to ramp up (approx. 45 seconds) and then PRESS & HOLD the "SuperChlor" button for approx. 3-5 seconds UNTIL the "Water Flow" light comes on.
- In each test, the LED lights above the "CL2" button will alternate back and forth between two values. On value of indicator lights will be lit simutaneosuly with the ON/OFF led light ON. The second value is indicated by the number of LED CL2 indicator lights lit when the ON/OFF LED light is OFF.
Optimal amp range is between 5.8 and 6.0. If you have confirmed that the cell is clean and salt level is proper a reading below 5.8 amps indicates the cell has come to the end of its useable life or the blades are damaged. After install a new Solaxx cell, the unit may show a solid "check cell" light for up to 60 minutes while the system resets.
