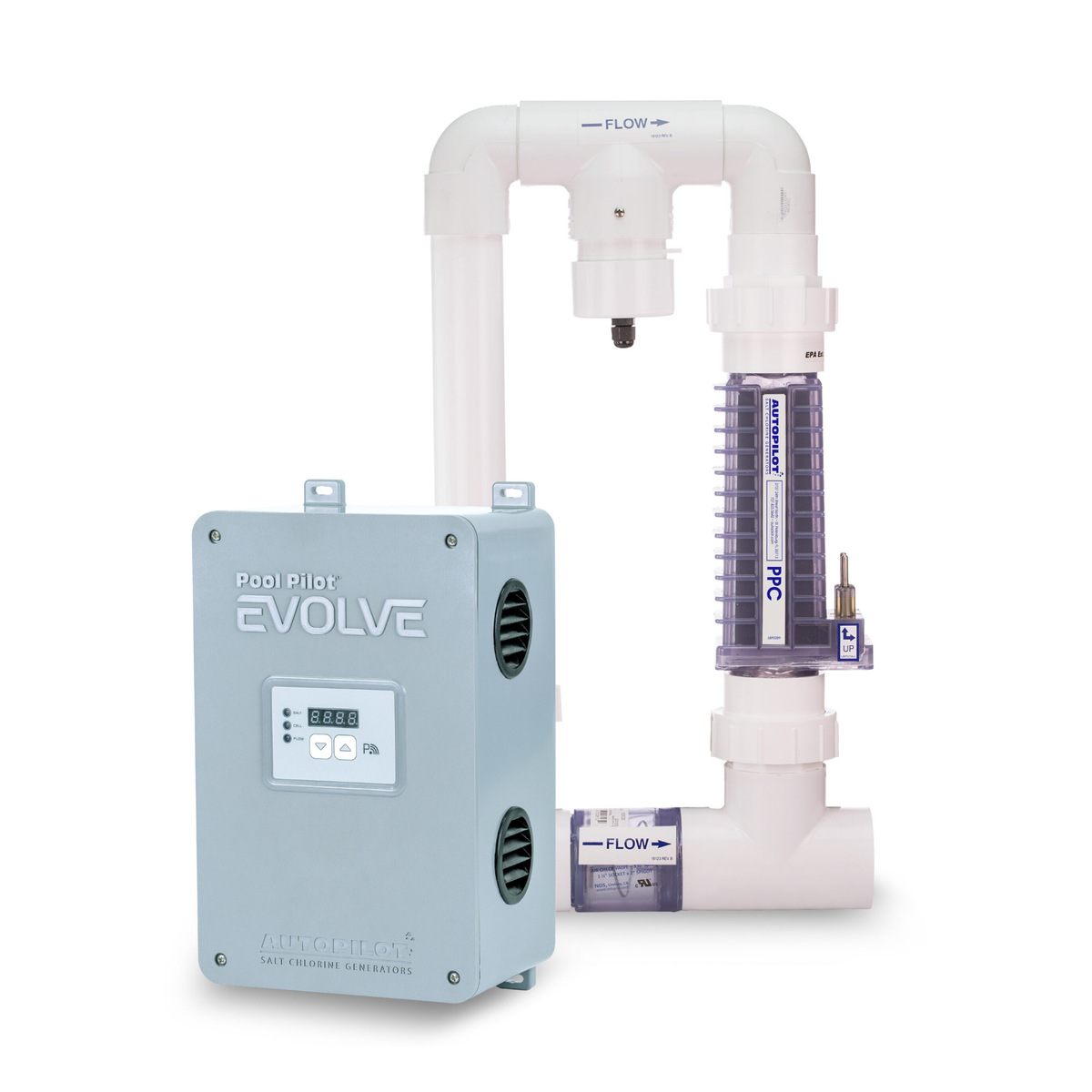

AutoPilot Pool Pilot Evolve Complete System Kit
$1,784.00
Unit price per
AutoPilot Pool Pilot Evolve Complete System Kit
$1,784.00
Unit price perIn stock - Ready to be shipped
AUTOPILOT POOL PILOT EVOLVE
The Ultimate Salt Chlorine Generator
AutoPilot Pool Pilot Evolve: The Ultimate Salt Chlorine GeneratorThe AutoPilot Evolve is a precision-engineered, sensor-driven system designed for the modern pool owner. As the oldest US-based manufacturer of salt chlorine generators, producing industry-leading technology since 1976, AutoPilot has perfected the reliability and performance that other brands are still trying to figure out.
PATENTED BYPASS MANIFOLD
Most other salt systems use a "straight-pipe" design. The exclusive & patented AutoPilot manifold is a specialized piece of engineering:
- Variable Speed Optimized: While systems like the Pentair IntelliChlor has a tight 25–80 GPM tolerance, the AutoPilot manifold works perfectly from 15-20 GPM to 100 GPM. This ensures you actually save money on your electric bill with your VS pump.
- The "Last Line of Defense": Includes an exclusive strainer screen that prevents debris from entering the cell. No other manufacturer offers this.
- True Salt Sensing: The Tri-Sensor (Flow, Temp, Salt) reads salt levels independently of the cell. Competitors like Hayward and Pentair "calculate" salt based on cell performance, which becomes wildly inaccurate as the cell ages often causing frustrated pool owners to prematurely replace their salt cell.
- Vertical Safety: The vertical design naturally dissipates hydrogen gas, eliminating the "gas pocket" explosion hazards found in horizontal installations.

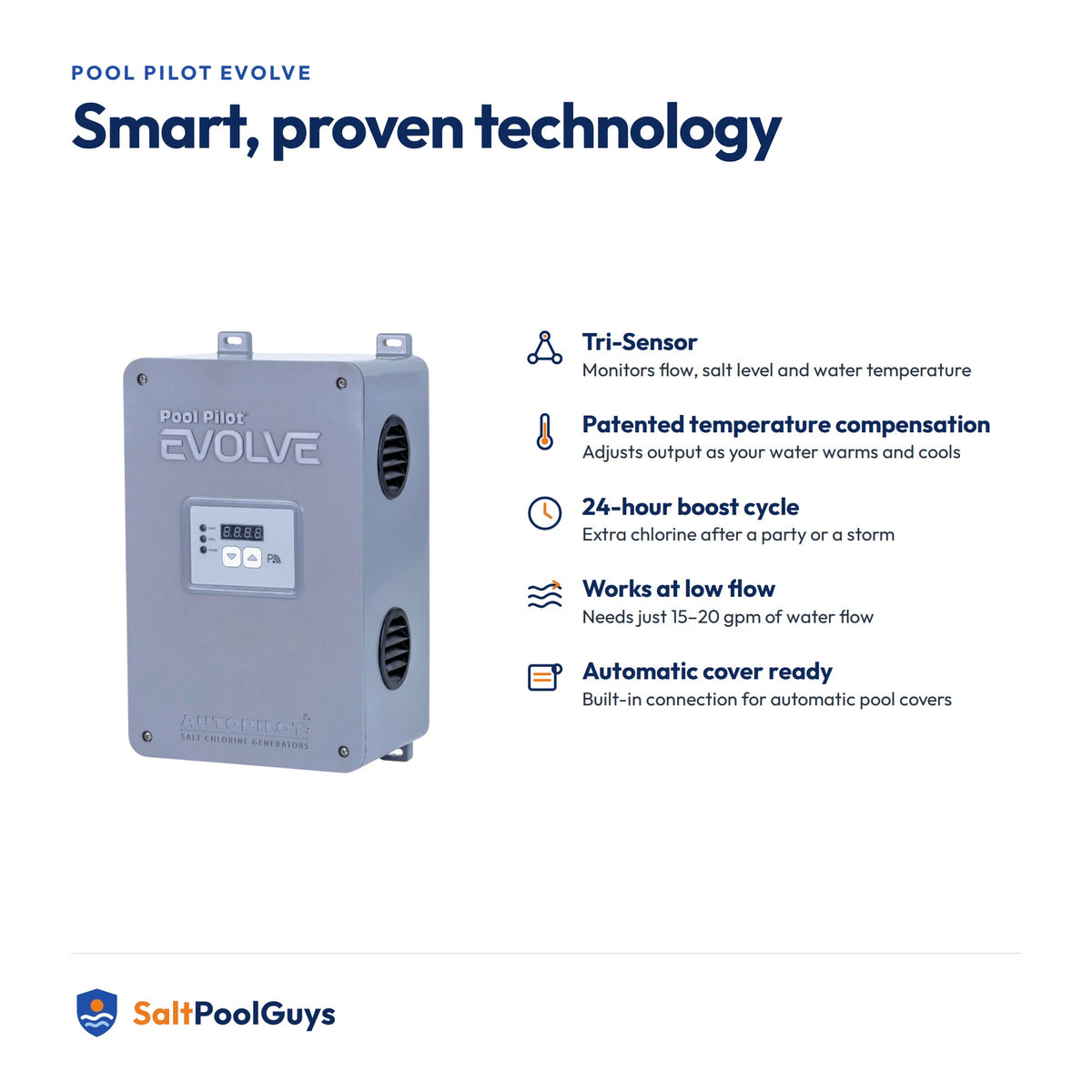

SMART FEATURES & PERFORMANCE
Temperature Compensation
Automatically adjusts chlorine output based on water temperature (above or below 77°F). It prevents over-chlorination in winter and keeps the pool clear in summer heat.
Boost Mode
A simple one-touch 24-hour "shock" cycle for after heavy use or rain.

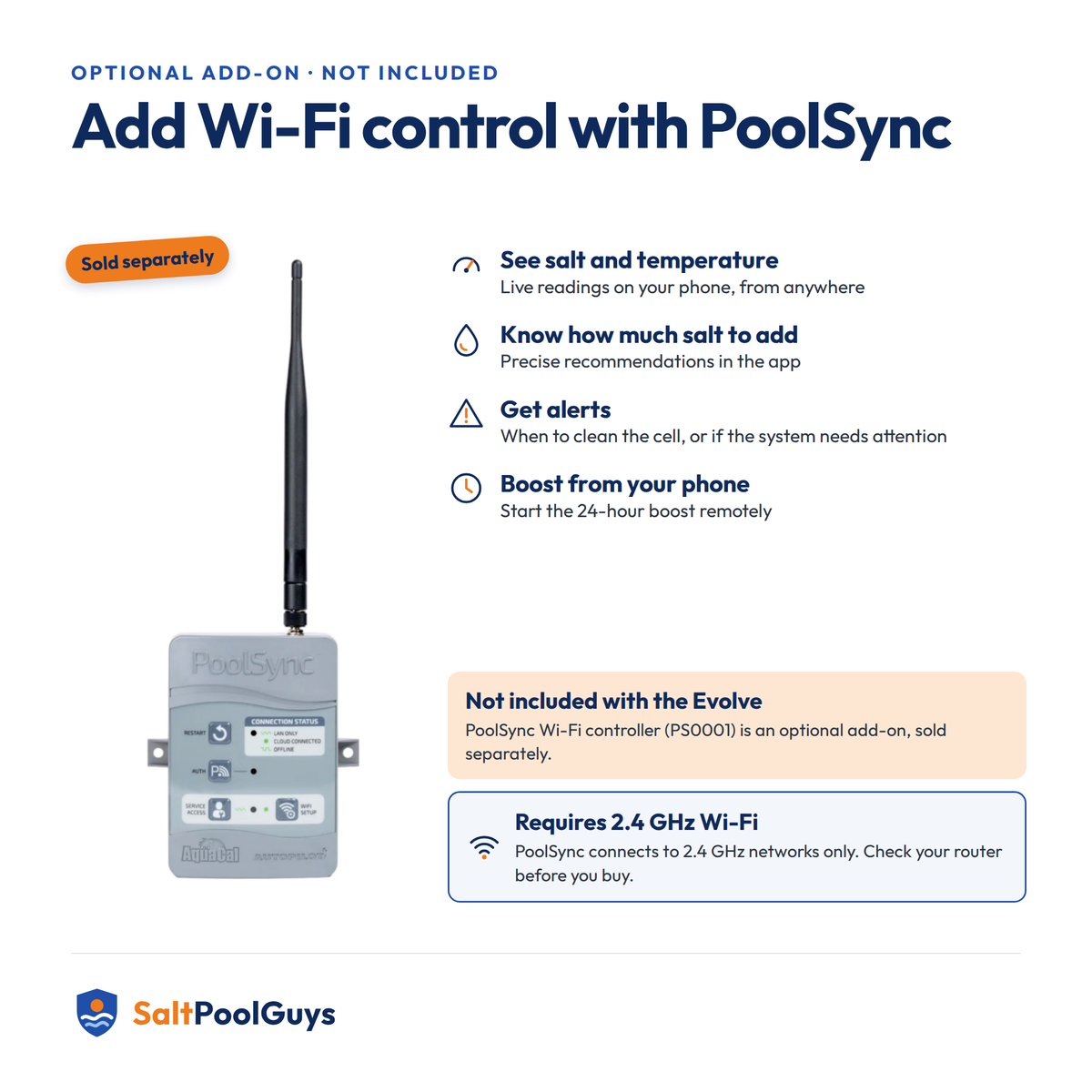

PoolSync WiFi Compatible
Add the optional PoolSync Wi-Fi controller to monitor & control the Evolve from your phone.
VARIABLE SPEED PUMP READY
The AutoPilot Pool Pilot Evolve is the most "VS-pump friendly" salt system on the market today while also being fully compatible with traditional single speed pool pumps.
A common complaint with competing salt systems is that they often struggle with "Low Flow" errors when running at high-efficiency speeds. When this happens the pump output needs to be turned up, negating the cost savings of the variable speed pump.
The Evolve's Patented Bypass Manifold is engineered to activate at flow rates as low as 15–20 GPM. This allows you to maximize the energy savings of a variable speed pump without sacrificing chlorine production.
Why choose SaltPoolGuys.com
- Authorized Dealer Since 2007: To keep the 3-year warranty valid, AutoPilot requires purchase from an authorized dealer. SaltPoolGuys.com is one of the only authorized dealers selling online.
- The DIY "No-Ding" Warranty: Unlike Hayward, Jandy or Pentair, who may slash or void your warranty if you install it yourself, AutoPilot keeps your full warranty intact for DIY installs.
- Exclusive Support: We offer Lifetime Installation & Tech Support to our customers. We aren't just a box-shipper; we are your partners in pool maintenance.
AutoPilot Pool Pilot Evolve Overview

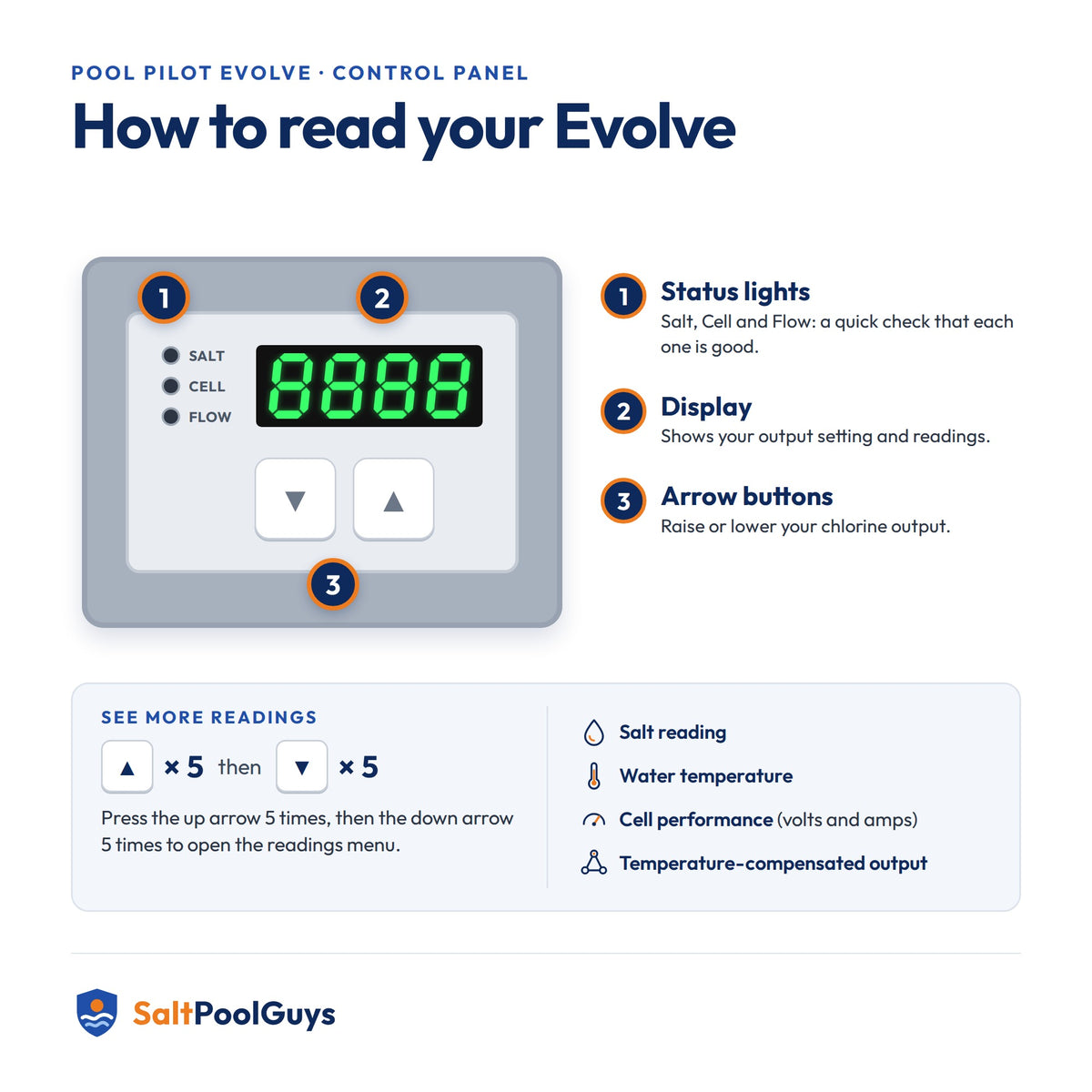

Display
Digital Front-Facing Backlit LCD with Built-In Diagnostics
Sensor
Exclusive AutoPilot Tri-Sensor Detecting Water Flow, Water Temperature & Salt Levels
Boost Mode
One-Touch 24 Hour Boot (100% Output)
Debris Control
Built-In Debris Strainer Screen
WiFI
Smart control & monitoring via PoolSync WiFi Controller (Optional, Add-On)
Salt Level
Minimum: 2,300 PPM & Alerts at Below 3,000 PPM (Ideal: 3,500-4,500 PPM)
DIY Install?
Yes, with full warranty remaining intact. When you purchase from SaltPoolGuys.com we offer free lifetime technical support including help from AutoPilot factory trained techs during installation.
Warranty
3-Year Manufacturer's Warranty - AutoPilot requires that their products are purchased from authorized dealers. While there may be many resellers online, SaltPoolGuys.com is one of the few authorized AutoPilot dealers offering the Pool Pilot Evolve available for online purchase.
AutoPilot Pool Pilot Evolve Sizing
The chart below is based on AutoPilot's sizing guidelines. We recommend "up-sizing" your system. A system running at 50% capacity lasts much longer than one running at 100% to keep up. If you have questions on which size cell is best for your pool please reach out to us for assistance. For commercial or high chlorine demand residential pools please contact us.
PPC1 Cell (PPM1 Manifold)
Up to 30,000 Gallons (Residential)
PPC3 Cell (PPM3 Manifold)
Up To 40,000 Gallons (Residential)
PPC4 Cell (PPM4 Manifold)
Up To 50,000 Gallons (Residential)
PPC4 Cell (PPM5 Manifold)
Up to 70,000 Gallons (Residential)
Electrical & Plumbing Specs
Manufacturer/Brand
AutoPilot Pool Pilot
Input Voltage
110v/115v or 220/230v (Dual Voltage Power Supply)
Power Connection
Hardwire (110/115v or 220/230v) or Plug-In 110/115v with GFCI (Plug-in cord not included.)
Bonding
External Bonding Lug (Requires #8 Sold Wire, Not Included)
Plumbing Size
2" PVC at Manifold Base (Can be installed to 1.5" with the use of (2) 1.5" reducer bushings, not included.)
Flow Range
20-100 GPM (Gallons Per Minute) - While rare on most residential pools, installations exceeding 100 GPM will require an additional bypass to installed (not included).
