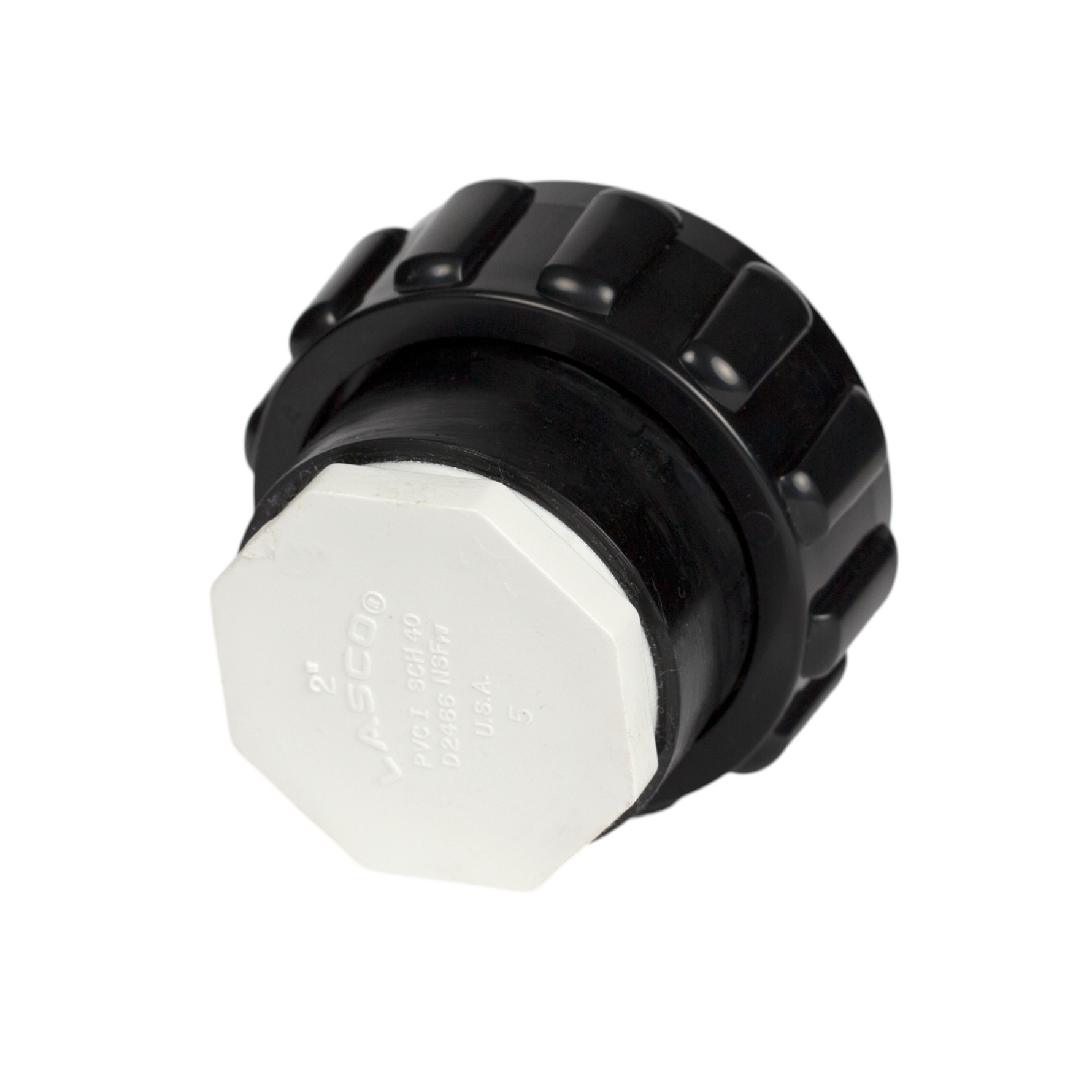

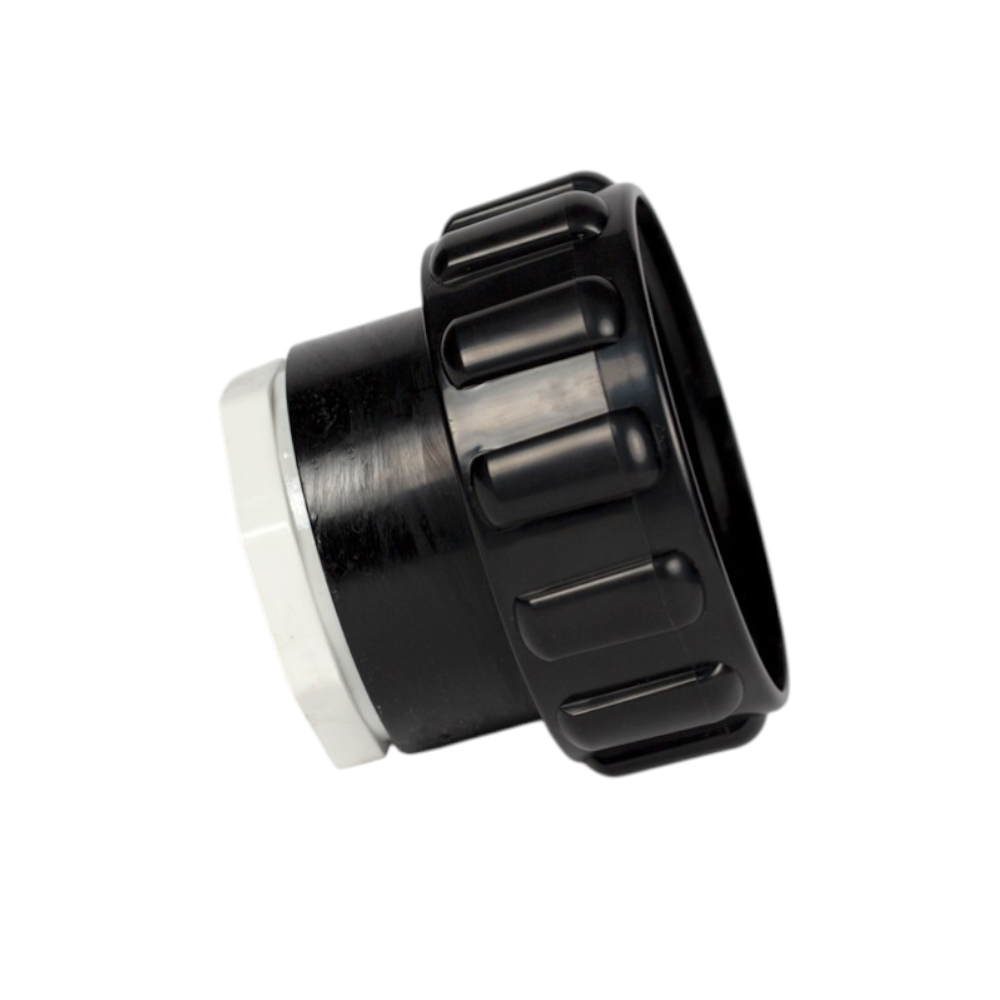

AutoPilot ChlorSync Gen I Cell Cleaning Cap Kit - STK0227

Cap

How to Clean an AutoPilot ChlorSync CS Series (CS30, CS40, CS50) Salt Cell

1. Turn off the water circulation pump.
2. Power off the ChlorSync power center and disconnect the cell from the power center.
3. Remove cell from plumbing.
4. Remove any loose scale with a garden hose using a high-pressure attachment.

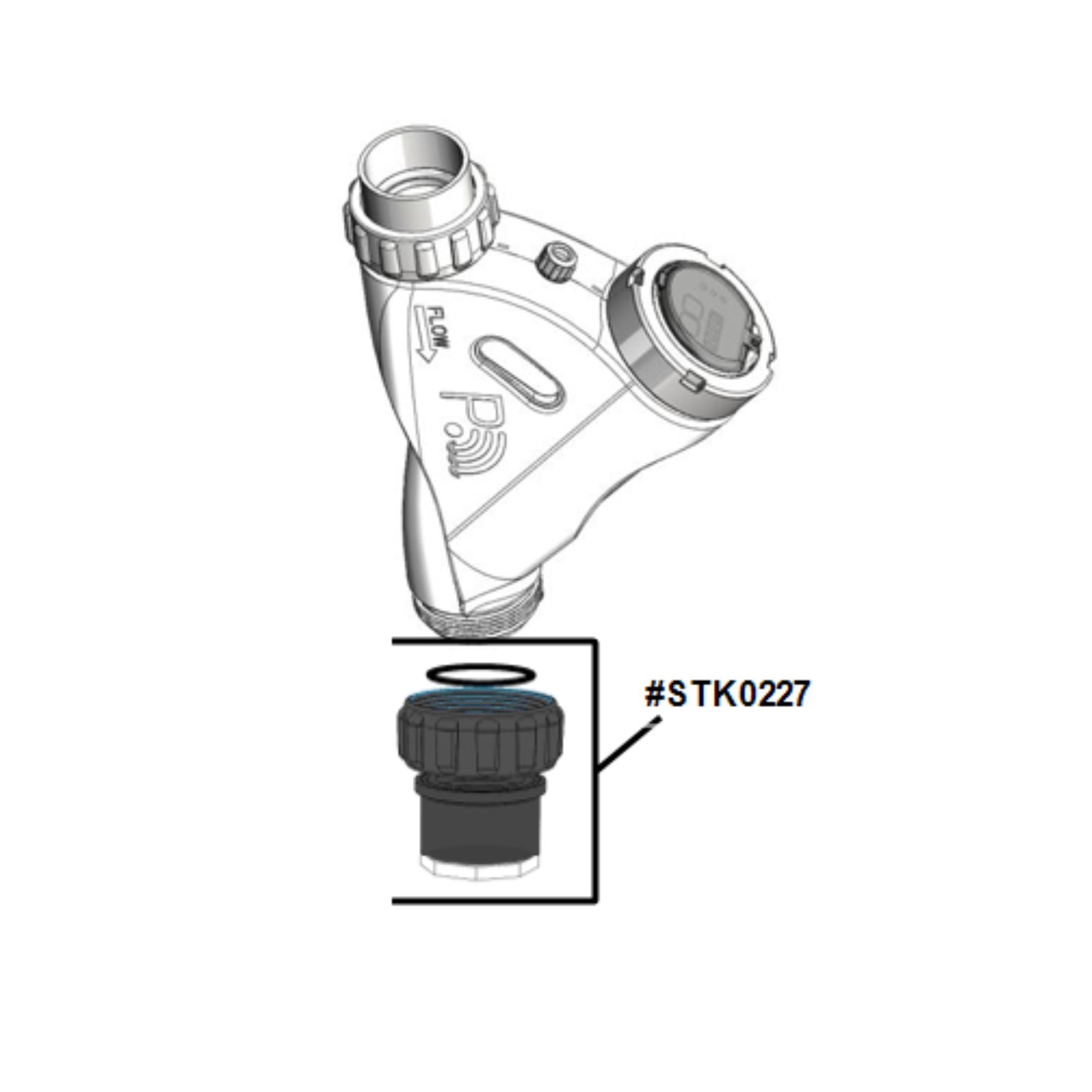

5. Place the AutoPilot Acid Wash Kit (part #STK0227) on the end of the cell and hand tighten.
6. Fill the capped cell with water two inches from the top of the cell blades.
6. Fill the rest of the cell with muriatic acid, being careful not to allow solution to overflow onto the outside of the cell. This allows for an approximate 1-to-4 solution. Always add the acid to the water. If you do it the other way around, it may cause the solution to spray back, causing serious injury.

5. • If solution does spill over onto the outside of the cell, rinse with water immediately.
   • Sulfuric and no fume acid do not give favorable results and are not recommended.

8. Allow the solution to sit in the cell for fifteen (15) minutes or until the acid stops bubbling.
9. Safely dispose of the solution; pouring it into the pool is recommended.
10. Remove the cap from the cell and rinse with light water pressure; re-inspect the cell, and repeat acid cleaning if the cell is still scaled.
