AquaCal AutoPilot
Aquacal Retrofit Kit HP7 to HP11 - STK0269
$749.00
Unit price perInstallation:
- Important before ordering: This is a control-system retrofit kit requiring installation by a qualified installer. Installation includes wiring changes, sensor installation, and drilling internal plumbing. Additional mounting or fan-control components may be required depending on your heat pump.
- Please review the installation manual before ordering.
Support & Compatibility Questions:
- For compatibility confirmation and installation, wiring, programming, or troubleshooting questions beyond those covered on this page please contact AquaCal directly at www.aquacal.com/help. Have your heat pump’s model and serial numbers available. SaltPoolGuys handles orders and shipping.

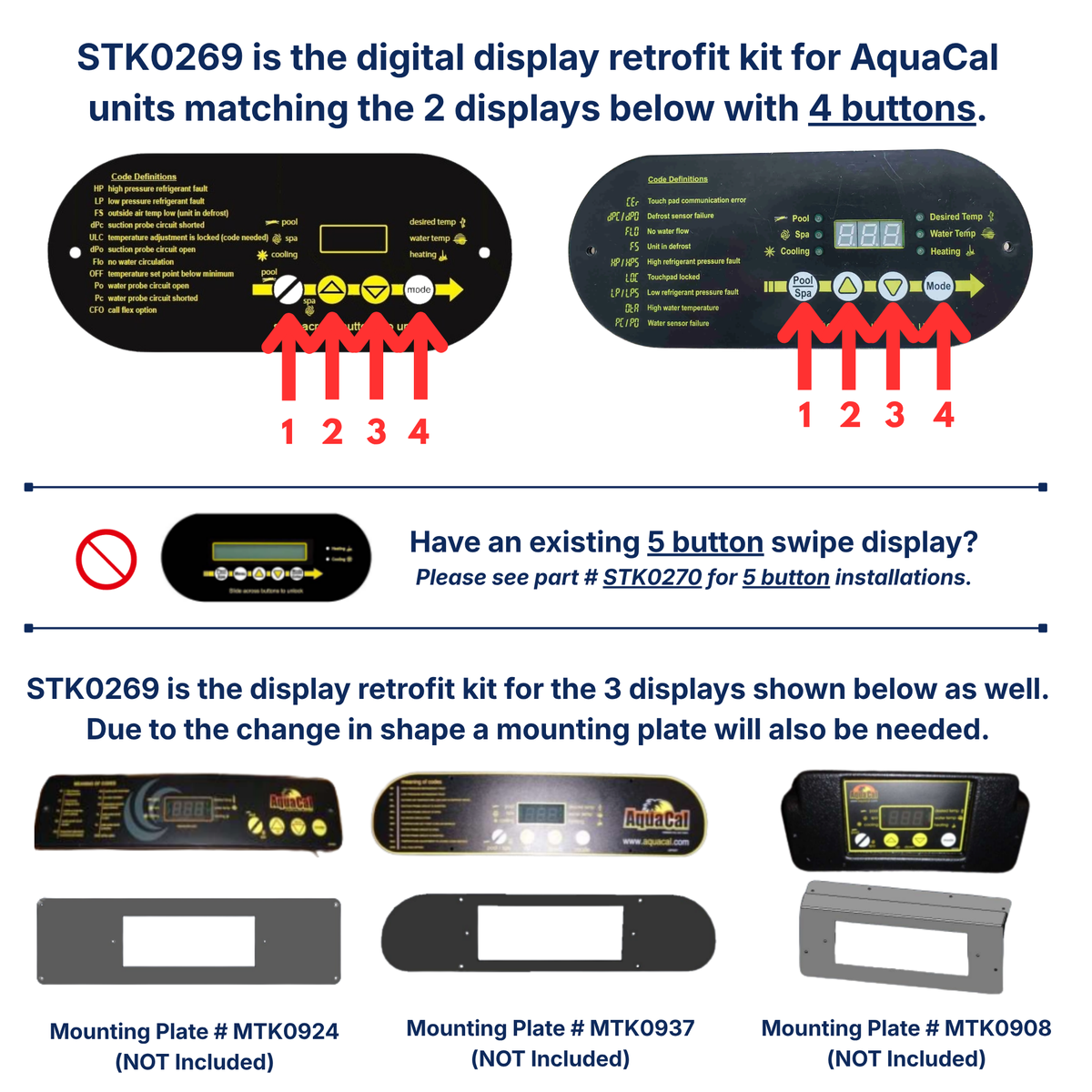

Compatibility:
- This kit replaces existing 4 button swipe with yellow arrow or 4 button non-swipe displays for AquaCal HEAT & COOL pool heat pumps.
- This control panel can also be used with "heat only" models if you prefer a digital display. Otherwise 4 button "heat only" heat pump controls can be replaced with the non-digital AquaCal part # STK0253 which is more economical ("heat only models" only).
- If your existing AquaCal display is not oval as shown in the photo above you will need an adapter plate for this upgrade.
WiFi Option:
- This kit will upgrade your heat pump to be PoolSync Ready. This means that you can add the optional PoolSync WiFi Antenna kit (NOT included, optional accessory) for remote control of your AquaCal heat pump.

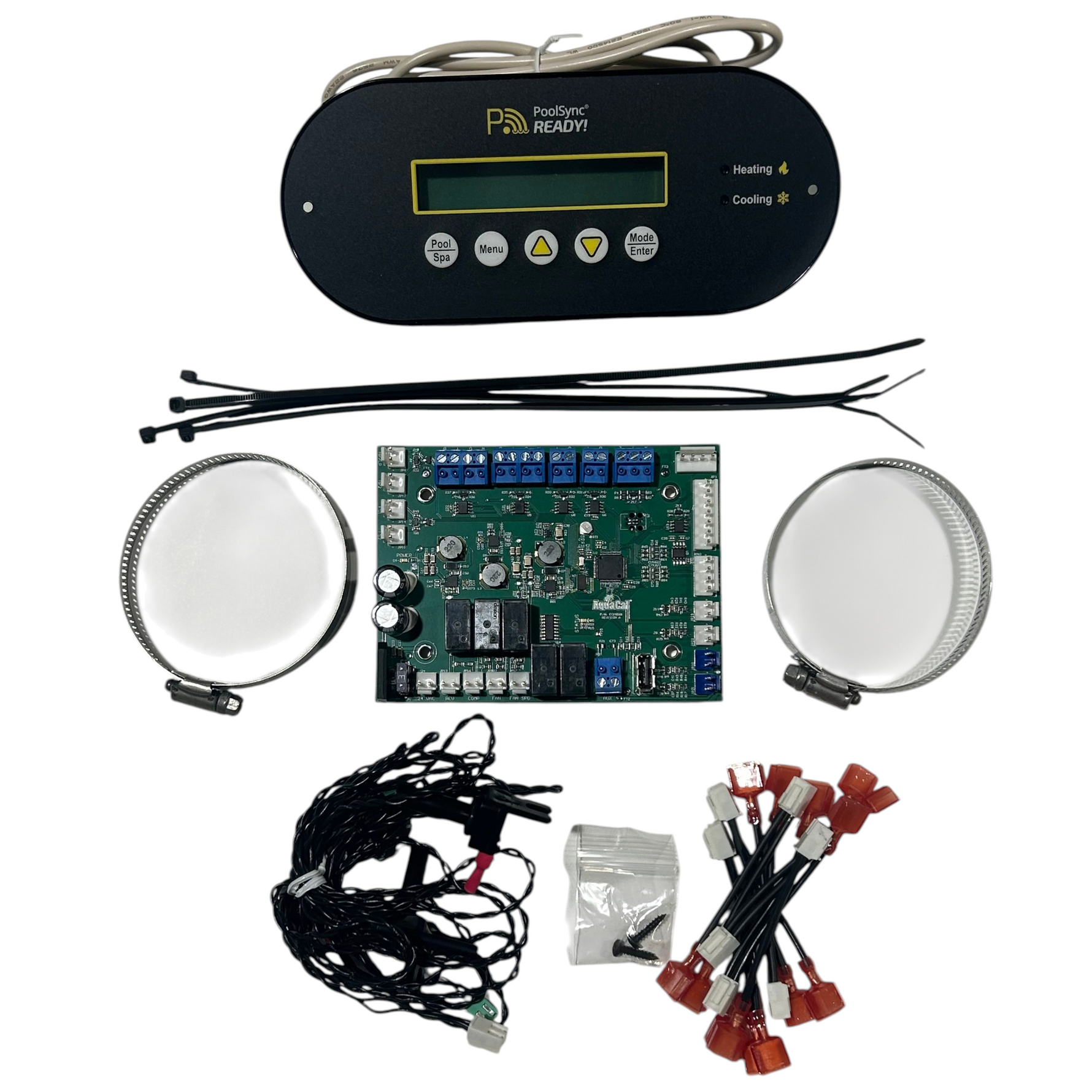

Includes:
- (1) HP11 Control/Display Panel (Digital)
- (1) HP11 Control Board Microprocessor
- (2) Water Temperature Sensors*
- (1) Defrost Sensor**
- (7) Wire Adapters/Connectors
- (2) Hose Clamps
- (4) Tie Wraps
*The water temperature sensor that comes in this kit needs to be installed in the water inlet pipe next to the water sensor already installed. BOTH water sensors must be used and connected to the control board. This will require drilling the existing internal plumbing to create a 3/8" hole.
More Details:
- AquaCal Part #: STK0269
- Manufacturer: Genuine AquaCal Replacement Part
- Manufacturer's Warranty: 1 Year Manufacturer's Warranty
Aquacal Retrofit Kit HP7 to HP11 - STK0269
$749.00
Unit price perIn stock - Ready to be shipped
Product Details
Installation:
- Important before ordering: This is a control-system retrofit kit requiring installation by a qualified installer. Installation includes wiring changes, sensor installation, and drilling internal plumbing. Additional mounting or fan-control components may be required depending on your heat pump.
- Please review the installation manual before ordering.
Support & Compatibility Questions:
- For compatibility confirmation and installation, wiring, programming, or troubleshooting questions beyond those covered on this page please contact AquaCal directly at www.aquacal.com/help. Have your heat pump’s model and serial numbers available. SaltPoolGuys handles orders and shipping.
Compatibility:
- This kit replaces existing 4 button swipe with yellow arrow or 4 button non-swipe displays for AquaCal HEAT & COOL pool heat pumps.
- This control panel can also be used with "heat only" models if you prefer a digital display. Otherwise 4 button "heat only" heat pump controls can be replaced with the non-digital AquaCal part # STK0253 which is more economical ("heat only models" only).
- If your existing AquaCal display is not oval as shown in the photo above you will need an adapter plate for this upgrade.
WiFi Option:
- This kit will upgrade your heat pump to be PoolSync Ready. This means that you can add the optional PoolSync WiFi Antenna kit (NOT included, optional accessory) for remote control of your AquaCal heat pump.
Includes:
- (1) HP11 Control/Display Panel (Digital)
- (1) HP11 Control Board Microprocessor
- (2) Water Temperature Sensors*
- (1) Defrost Sensor**
- (7) Wire Adapters/Connectors
- (2) Hose Clamps
- (4) Tie Wraps
*The water temperature sensor that comes in this kit needs to be installed in the water inlet pipe next to the water sensor already installed. BOTH water sensors must be used and connected to the control board. This will require drilling the existing internal plumbing to create a 3/8" hole.
More Details:
- AquaCal Part #: STK0269
- Manufacturer: Genuine AquaCal Replacement Part
- Manufacturer's Warranty: 1 Year Manufacturer's Warranty
AquaCal Part FAQs
Unfortunately in most cases this is not an answer that we have. If we do have compatibility info it will be listed in the "Product Details" section above. If it is not listed above then we do not have this info.
AquaCal has made adjustments to parts over the years and in cases where we do not list this information in the above "Product Details" it is because AquaCal will need to identify the proper part # based on your model & serial info.
Yes! We are an authorized AquaCal dealer and this is an authentic AquaCal part. As such this part carries AquaCal's 1 year manufacturer's warranty for replacement parts.
Purchasing from an authorized AquaCal dealer is critical to ensure that you have warranty coverage. If a part is purchased from a non-authorized dealer you will not get the manufacturer's warranty as per their written warranty policy.
For AquaCal products you will need to reach out directly to AquaCal during their regular business hours (Monday-Friday excluding holidays) with the model # & serial # of your AquaCal unit for installation, troubleshooting or technical questions. We do not have access to AquaCal's technical library needed for assistance with AquaCal units.
